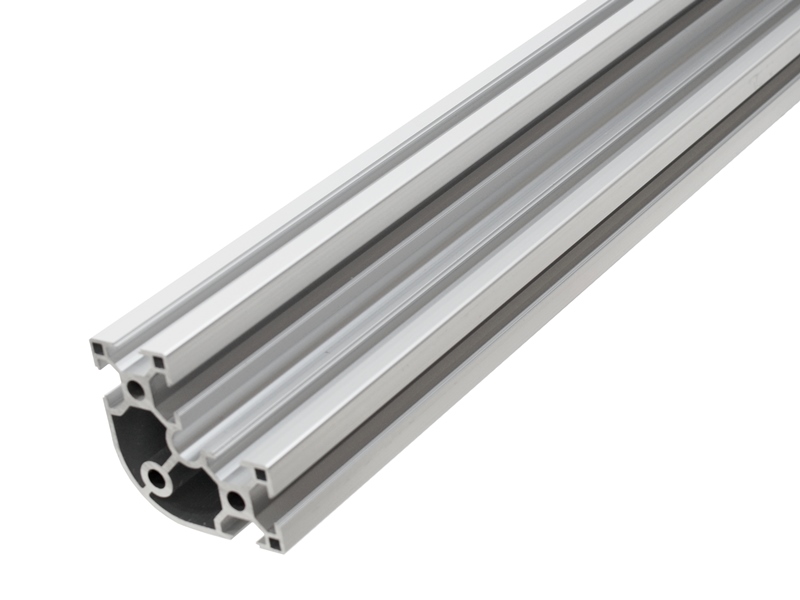

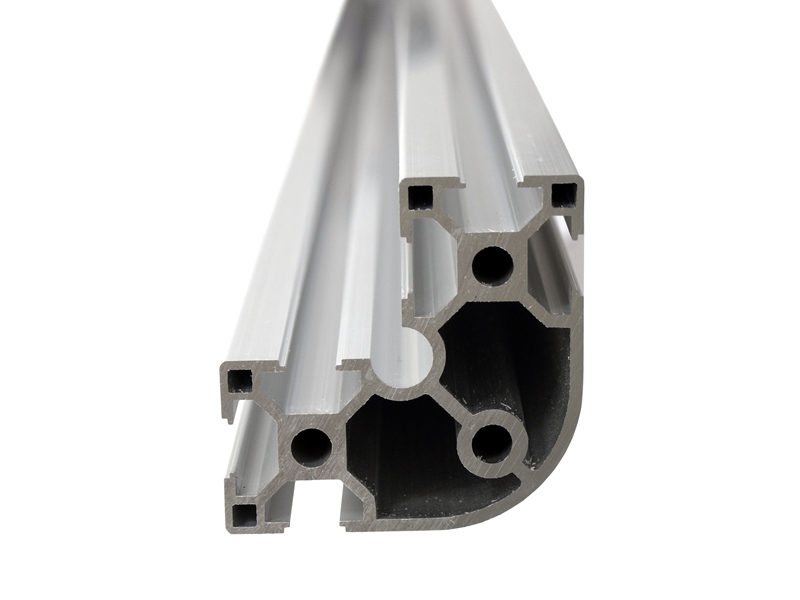

Series 30 corner profile with 60mm sides, with one corner rounded. The profile is intended for corners and edges, where a nice finish is wanted or a sharp edge is unwanted.
There are 6 x series 30 tracks in the profile, and 3 x 6.8mm holes that can be cut up to M8 thread. The holes can be used for feet and wheels.
Facts for 99cm
| Alloy: | 6063-T5 |
| Moment of inertia: | LX 33,94cm⁴ - LY 13,82cm⁴ |
| Section of modulus: | Zx 11,31cm³ - Zy 9,21cm³ |
| Surface: | Anodized, natural |
| Weight: | 2,6kg/m |
Facts for 199cm
| Alloy: | 6063-T5 |
| Moment of inertia: | LX 33,94cm⁴ - LY 13,82cm⁴ |
| Section of modulus: | Zx 11,31cm³ - Zy 9,21cm³ |
| Surface: | Anodized, natural |
| Weight: | 2,6kg/m |
Facts for 300cm
| Alloy: | 6063-T5 |
| Moment of inertia: | LX 33,94cm⁴ - LY 13,82cm⁴ |
| Section of modulus: | Zx 11,31cm³ - Zy 9,21cm³ |
| Surface: | Anodized, natural |
| Weight: | 2,6kg/m |
Series 30 corner profile with 60mm sides, with one corner rounded. The profile is intended for corners and edges
