Serie 20 - Profile - 4040

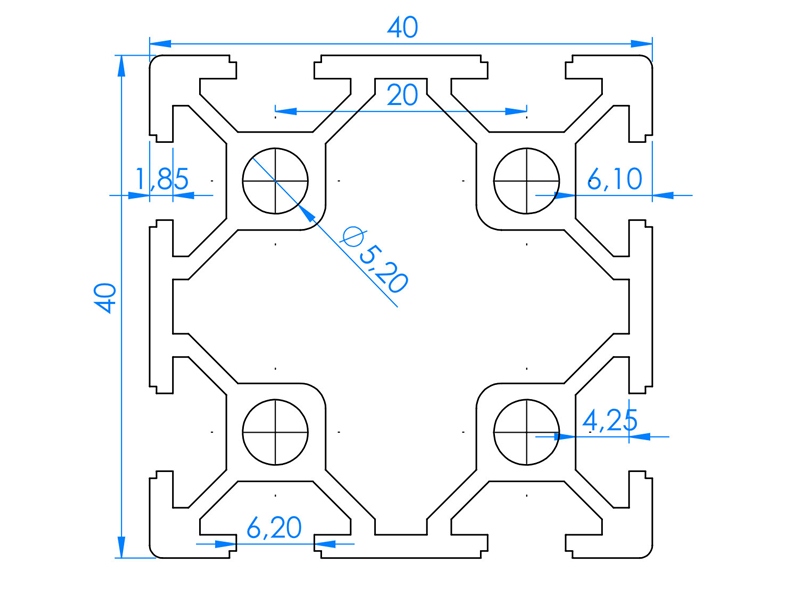

Large profile with basic dimendsions 40x40mm and 6mm slots. 2 tracks on all 4 sides. The high stiffness makes this profile perfect for larger constructions.

Large profile with basic dimendsions 40x40mm and 6mm slots. 2 tracks on all 4 sides. Perfect for larger constructions,

Vis fuld beskrivelse

Pick length

	99 cm
	199 cm
	300 cm

Datasheet

Download datasheet

Alternatives
Downloads

Files

Title	Size	Description
DXF profile drawing	74.502 KB	Can be used for CAD programs

Alloy:	6063-T5
Moment of inertia:	LX 8,1cm⁴ - LY 8,1m⁴
Section of modulus:	Zx 4,05cm³ - Zy 4,05cm³
Surface:	Anodized, natural
Weight:	1,5kg/m

Alloy:	6063-T5
Moment of inertia:	LX 8,1cm⁴ - LY 8,1m⁴
Section of modulus:	Zx 4,05cm³ - Zy 4,05cm³
Surface:	Anodized, natural
Weight:	1,5kg/m

Alloy:	6063-T5
Moment of inertia:	LX 8,1cm⁴ - LY 8,1m⁴
Section of modulus:	Zx 4,05cm³ - Zy 4,05cm³
Surface:	Anodized, natural
Weight:	1,5kg/m

Width	40.0 mm
Height	40.0 mm
Length	999.0 mm

Width	40.0 mm
Height	40.0 mm
Length	2000.0 mm
