LED Running Light and Indicator Lamp - 12V

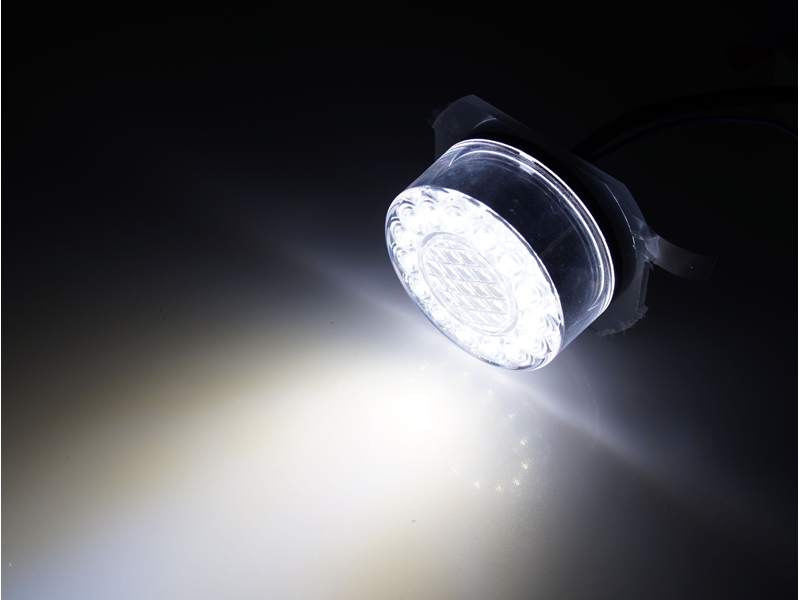

A lamp with a white ring of 15 powerful LEDs that work as DRL, while the round circle with 19 yellow LEDs in the middle - as an indicator. The lamp is 80mm in diameter with a thickness of 40mm. The lamp is easily being mounted with 2 bolts.

The lamp is protected against impacts and vibrations and is completely waterproof (IP67), so it can be fully immersed. There is a 5-years waranty from the manufacturer.

The lamp is ECE and EMC approved.

Connection

Red: DRL
Brown; Position light
Yellow: Indicator
White: Ground / Minus
Blue: Bulb control

The bulb control wire can be connected to all lamps in the same side. If one does not work, neither will turn on. This should make the bulb control react with an error.
