LED Lighting Garden and outdoor LED rope lights (SMD)

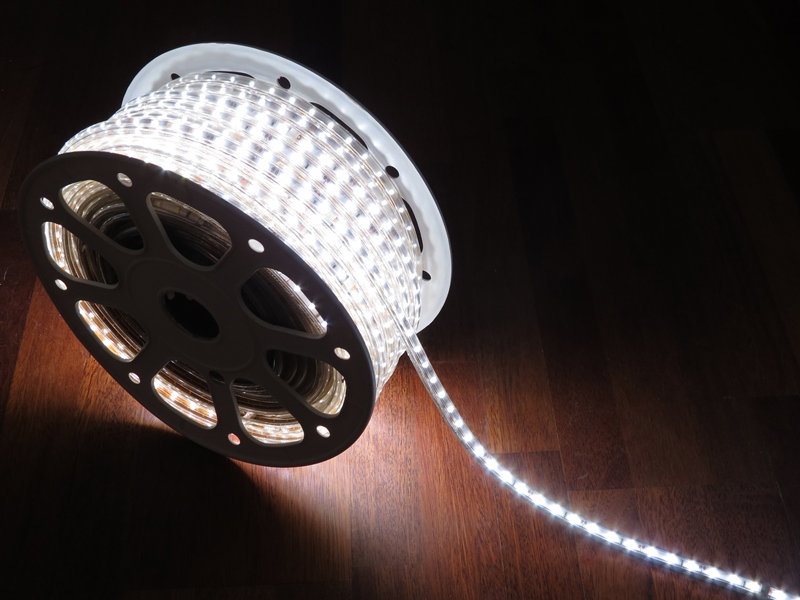

12V SMD LED Rope Light

    A nice flexible SMD LED Rope Light that gives a stronger light than our normal rope lights, however it illuminates only in one direction. But at the same time, it is perfect for a light on the wall and/or ceiling. Dispersion of the light is approximately 140 degrees.

    With the mounting-accessories, it is easy to set it up and to connect it to 12Vdc on vehicles or for 230V-12Vdc power transformers

    Please note the following:

    • We can deliver whole pieces at max. 30 m. If you order more than 30 m we will try to make as few lengths as possible.
    • It can only be separated per 50 cm. There are gaps between the flexible printed circuit, where you can cut the tape over.
    • Avoid bending the rope light too much, and do not make sharp corners or it might crack. The tape will then stop working in the broken section. Use the angle-connectors with wires instead.
    • You must use the correct plug and end caps in order to ensure that the ribbon is completely waterproof.

    If you mount the tape longer than 20 metres, we recommend that you mount the transformer in the middle. Otherwise you will have significantly less light in the end due to voltage drop. By even greater lengths you should use multiple transformers. Alternatively you must choose 24V Rope Light, where this is a much smaller probem.

    A nice flexible SMD LED Rope Light that gives a stronger light than our normal rope lights, however only in one direction.

    Vis fuld beskrivelse

    Relaterede kategorier

    Transformers, power supplies and inverters

    Pick color







    Datasheet

    Download datasheet

    Required products

    One workday for delivery

    Connecting Cable for SMD Rope Light

    Cable and a connector for the SMD Rope Light.

    DKK 29,00
    Pick option
    One workday for delivery

    End Caps for SMD Rope Light

    Rubber end caps to be fitted at the end of the rope light.

    DKK 2,50
    Info

    Accessories

    One workday for delivery

    Connector-cable for SMD Rope Light

    A flexible cable for connecting two Rope Lights. It can be used to combine several lenghts or for making angles.

    DKK 19,00
    Pick option
    One workday for delivery

    Clip for SMD Rope Light

    Clips in a hard plastic to be attached to the SMD Rope Light. It is being mounted easily with two screws.

    DKK 1,50
    Info
    One workday for delivery

    Starter-pack for 12V SMD Rope Light

    Complete starter-pack with a waterproof transformer, a connection cable, clips and an endcap. Available for 5 to 30 metres rope light.

    DKK 349,00
    Pick option

    Related

    One workday for delivery

    Transformers for installation - 230VAC - 12VDC

    Non-dimmable transformers that are connected to 230VAC on the input with screw terminals and to 12VDC on the output.

    DKK 99,00
    Pick option
    One workday for delivery

    230V to 24V DC LED transformer, IP67

    12V transformers in waterproof enclosures. Models from 50W to 250W. A solid construction with potted electronics.

    DKK 179,00
    Pick option
