Amplifier module with Bluetooth 4.0 - 2 x 50W - Single module

Amplifier module with built-in Bluetooth and analogue input (3.5mm plug). The module can play music and other sound wireless over Bluetooth 4.0 from smartphone, tablet and PC. The amplifier has 2 outputs of 50W outputs.

The amplifier is supplied with 12V
4,6,8,16 ohm impedance.

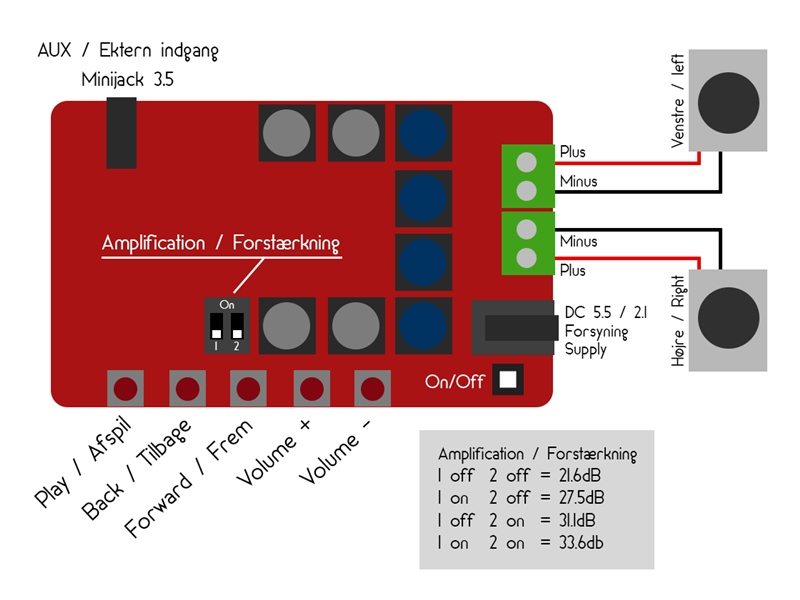

There is screw-terminals on outputs for the speakers, and a standard 5.5/2.1 DC plug on the supply.

Buttons

There are buttons to control the connect bluetooth device (smartphone, pc etc.) if this supports it. The Play, Back, Next Vol+ and Vol-. This makes it easily to control the playback from the module.

There is also two micro-switches for adjusting the gain.
