Truck 24V

Helios MR16 LED bulb, 12V-24Vdc

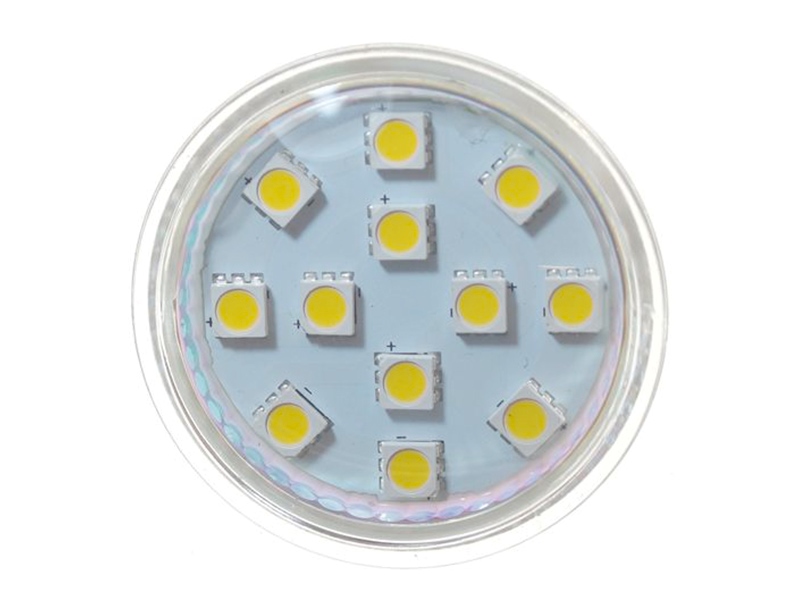

MR16 LED bulb with 12 pcs 3-Chip SMD LEDs. It is available in warm white light and in different colors.

The advantage with SMD LED is that the light scatter is very broad and compared to a normal MR16 bulb, this LED bulb gives a light equivalent to 25 ~ 30 Watts.

The light scatter is 120 degrees and the LED bulb has the same dimension as a traditional MR16 bulb with ø50mm.

This is suitable for outdoor use, since the LEDs are protected behind the front glass. This bulb is also suitable for use in photovoltaic installations, caravans, motor homes and boats , since it has a built in 10-30Vdc voltage regulation.

MR16 LED bulb with 12 pcs. 3-Chip SMD LEDs. It is available in warm white light and in different colors.

Vis fuld beskrivelse

Pick

	Warm white
	Xenon White
	Red
	Green
	Blue
	Yellow

Datasheet

Download datasheet

Accessories and related
LED bulb data
Alternatives

Socket	MR16
Bulb type	Spot
Voltage	AC12V (Non-electronic), DC12V, DC24V
Watt	2.4 Watt
Watt equivalent	30.0 Watt
Brightness	200 Lumen
Color temperature	2800 Kelvin
Angle	120 degree
Color rendering	80
Life time	30000 Hours
Dimming	Not dimmable
Energy class 2023	G Notice that new rules for energy-marking have been implemented in 2023. The intervalls have been changed, which means many bulbs that were previously A, are now F or G.

Lamp maintenance factor	70 %
On-off cycles	50000
Warmup time	Instant
Usable for spot	No - It has a a high beam angle
Lamp survival factor	95

Socket	MR16
Bulb type	Spot
Voltage	AC12V (Non-electronic), DC12V, AC24V
Brightness	204 Lumen
Angle	120 degree
Dimming	Not dimmable
Lamp maintenance factor	70 %
On-off cycles	50000
Warmup time	Instant
Usable for spot	No - It has a a high beam angle
Lamp survival factor	95

Socket	MR16
Bulb type	Spot
Voltage	AC12V (Non-electronic), AC24V
Watt	1.8 Watt
Brightness	72 Lumen
Angle	120 degree
Dimming	Not dimmable
Energy class 2023	G Notice that new rules for energy-marking have been implemented in 2023. The intervalls have been changed, which means many bulbs that were previously A, are now F or G.

Lamp maintenance factor	70 %
On-off cycles	50000
Warmup time	Instant
Usable for spot	No - It has a a high beam angle
Lamp survival factor	95

Socket	MR16
Bulb type	Spot
Voltage	AC12V (Non-electronic), AC24V
Brightness	99 Lumen
Angle	120 degree
Dimming	Not dimmable
Lamp maintenance factor	70 %
On-off cycles	50000
Warmup time	Instant
Usable for spot	No - It has a a high beam angle
Lamp survival factor	95

Socket	MR16
Bulb type	Spot
Voltage	AC12V (Non-electronic), DC24V
Brightness	30 Lumen
Angle	120 degree
Dimming	Not dimmable
Lamp maintenance factor	70 %
On-off cycles	50000
Warmup time	Instant
Usable for spot	No - It has a a high beam angle
Lamp survival factor	95

Socket	MR16
Bulb type	Spot
Voltage	AC12V (Non-electronic), AC24V
Brightness	72 Lumen
Angle	120 degree
Dimming	Not dimmable
Lamp maintenance factor	70 %
On-off cycles	50000
Warmup time	Instant
Usable for spot	No - It has a a high beam angle
Lamp survival factor	95

A downlight for MR16/G 5.3-Swivel-DL-83

A downlight, ø73mm for MR16 fitting. Brushed steel and swivel.

DKK 79,00

Length	49.0 mm
Diameter	50.0 mm

Length	49.0 mm
Diameter	50.0 mm
