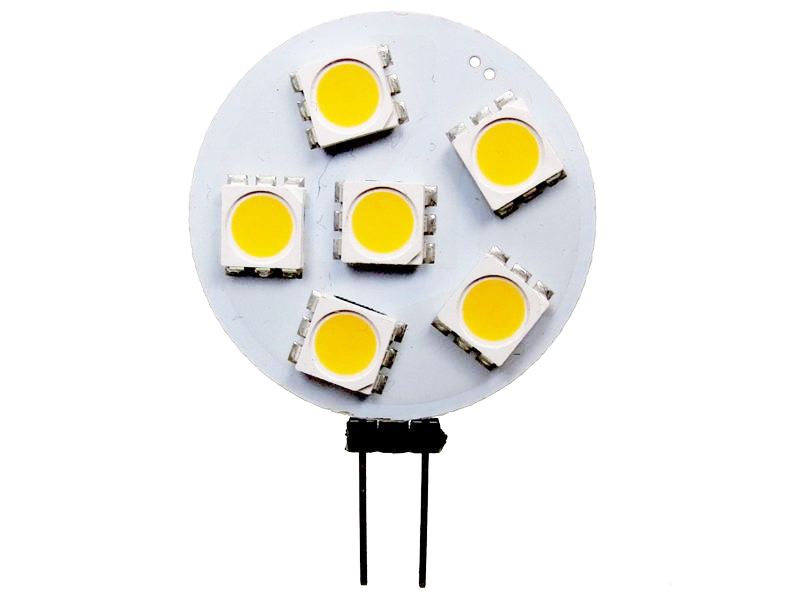

Helios G4 LED bulb, 1.2W - 95 Lumen
G4 Led bulb with 6 pcs. 3-Chip SMD diodes, which together produce a 95 lumens warm-white light. The light output is equivalent to ~ 10 Watt.
Do not use a electronic AC transformer for this bulb. Contact us if you are in doubt.
It can also be used on solar installations, caravans, motor homes and boats, as it has a 10-30 Vdc voltage regulation.
Only dimmable at 12Vdc.
Dimensions
| Depth | 10.0 mm |
| Diameter | 24.0 mm |
Compact G4 LED bulb with 6 pcs. 3-Chip SMD diodes. The light output is 95 lumens.
Prices per
at 1 DKK 39,00
at 10 DKK 35,00
at 20 DKK 29,00
Retail price: 39,00 DKK
Datasheet
| Socket | G4 |
| Bulb type | Spot |
| Voltage | AC12V (Non-electronic), DC12V, DC24V |
| Watt | 1.2 Watt |
| Watt equivalent | 10.0 Watt |
| Brightness | 100 Lumen |
| Color temperature | 2800 Kelvin |
| Angle | 120 degree |
| Color rendering | 80 |
| Life time | 35000 Hours |
| Dimming | Not dimmable |
| Energy class 2023 |
G
Notice that new rules for energy-marking have been implemented in 2023. The intervalls have been changed, which means many bulbs that were previously A, are now F or G. |
| Lamp maintenance factor | 70 % |
| On-off cycles | 50000 |
| Warmup time | Instant |
| Usable for spot | No - It has a a high beam angle |
| Lamp survival factor | 95 |
