Helios G4 LED bulb, 1.6W - 140 Lumen

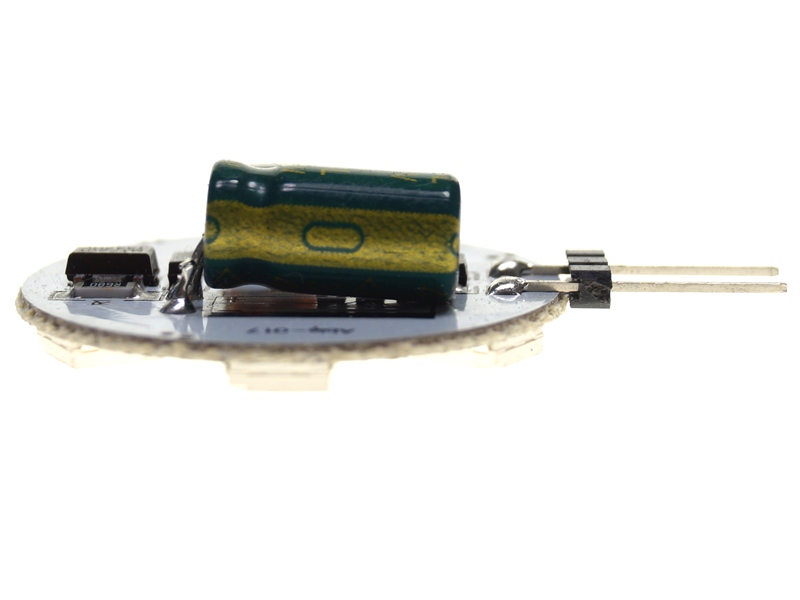

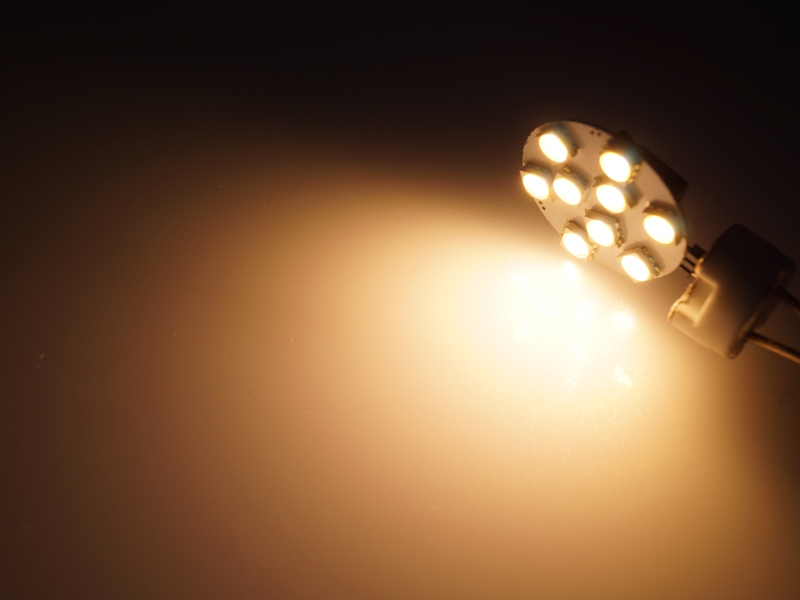

Compact model with 9 pcs. 3-Chip SMD diodes. The light output is 140 lumens. The light output is equivalent to ~ 15 Watt.
Do not use a electronic AC transformer for this bulb. Contact us if you are in doubt.
Even though the bulb is said to be dimmable, the dimming depends on the dimmer and the transformer. The minimum load on the dimmer should often be met, for the dimming to be optimal. Contact us if you are in doubt.
The bulb can also be used on solar installations, caravans, motor homes and boats, as it has a 10-30 Vdc voltage regulation.
Only dimmable at 12Vdc.
Dimensions
| Depth | 10.0 mm |
| Diameter | 28.0 mm |
Prices per
at 1 DKK 45,00
at 10 DKK 39,00
at 20 DKK 35,00
Retail price: 45,00 DKK
Datasheet
| Socket | G4 |
| Bulb type | Spot |
| Voltage | AC12V (Non-electronic), DC12V, DC24V |
| Watt | 1.6 Watt |
| Watt equivalent | 15.0 Watt |
| Brightness | 140 Lumen |
| Color temperature | 2800 Kelvin |
| Angle | 120 degree |
| Color rendering | 80 |
| Life time | 35000 Hours |
| Dimming | Yes, dimmable |
| Energy class 2023 |
G
Notice that new rules for energy-marking have been implemented in 2023. The intervalls have been changed, which means many bulbs that were previously A, are now F or G. |
| Lamp maintenance factor | 70 % |
| On-off cycles | 50000 |
| Warmup time | Instant |
| Usable for spot | No - It has a a high beam angle |
| Lamp survival factor | 95 |
