Complete AMP Superseal 1.5 plugs for 1.5mm²
A complete sets for Superseal 1.5 plugs that consists of a housing, terminals, wire-seals. The included terminals fit 0.75 - 1.5mm² conductors. Notice that you need a matching crimping tool to crimp the terminals.
It is possible to purchase a rubber-base for 2, 3, 4 and 5-terminal connectors, which all encapsulate the plug even more and protect the crimps when taking two connectors apart.
Terminals
It is also possible to buy extra metal-pins if the crimping is not successful.
Wire seals / gasket
The wire seals can be destroyed by a bad crimping, so it can be beneficial to have extra ready. They are available in 3 sizes, set by the outer diameter of the wire insulation. Typically you will use the yellow for 0.75 - 1.5mm².

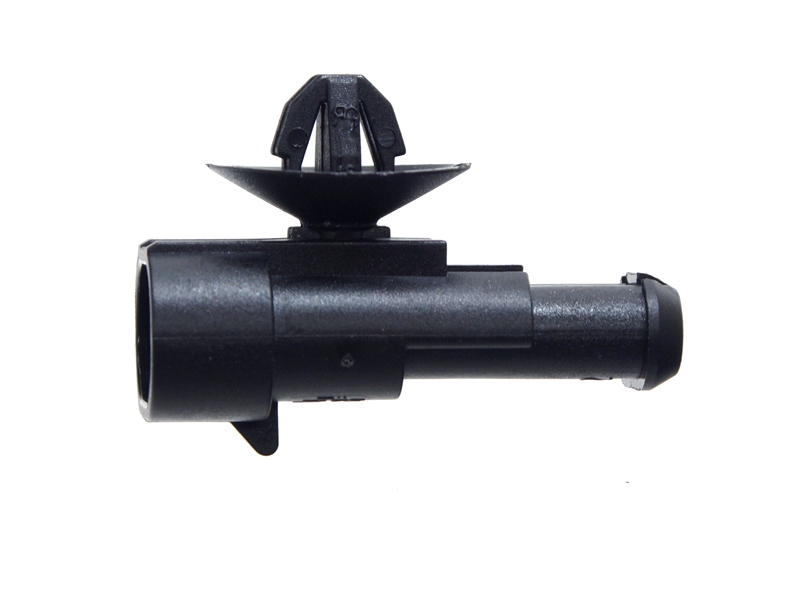

Fastener for male terminal plugs
The fastener is pushed in a suitable 8mm hole (0,8mm til 2.5mm thickness), and the male-terminal plugs is slid over the fastener.
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Male- and female-connectors must be purchased separately
Facts for Female, 2 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Male, 2 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Female, 1 pin
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Female, 3 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Female, 4 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Female, 5 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Female, 6 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Male, 1 pin
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Male, 3 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Male, 4 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Male, 5 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Male, 6 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Loose parts, Female terminal 0.75 - 1.5mm²
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Loose parts, Male terminal 0.75 - 1.5mm²
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Rubber base, 2 positions
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Rubber base, 3 positions
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Rubber base, 4 positions
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Rubber base, 5 positions
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Accessory, Cover for female 2 pins
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Accessory, Fastener for male-terminal-plugs
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Loose parts, Seal Yellow 1.8 - 2.4mm
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Loose parts, Seal Red 2.0 - 2.5mm
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Loose parts, Seal Greem 1.2 - 1.6mm
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Facts for Rubber base, 1 positions
| Gasket: | Silicone rubber |
| Ingress protection: | IP67 |
| Spænding: | 14A |
| Temperature: | -40° to +125°C |
| Voltage: | Max 60VDC |
Complete sets for male and female Superseal 1.5. Choose between plugs that consists of housings, terminals, wire-seals.
