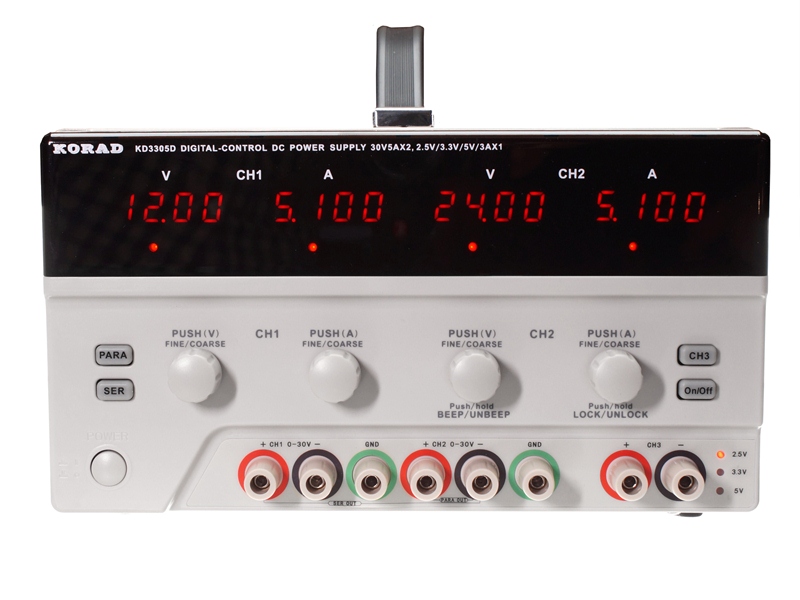

Advanced and precise digital powersupply, perfect for laboratories, electronics workshops and industry. The high quality powersupply has a great sturdy build quality, with a carrying handle on top and rubbet feets on the bottom.
The large powersupply has 3 outputs:
- CH1: 30V 5A - Adjustable, constant current and voltage
- CH2: 30V 5A - Adjustable, constant current and voltage
- CH3: 5V/3.3V/2.5V 3A - Adjustable voltage
The two outputs CH1 and CH2 can be adjusted with the dials on the front, with a resolution of 10mV and 1mA. The chosen voltage is saved in memory. The two outputs can be coupled serial and parallel, using the buttons PARA and SER on the front.
The voltage of CH3 is changed with the button CH3, where the chosen voltage is shown with a LED indicator on the bottom right side.
The powersupply has a very low ripple / noise (≤ 2mVrms og ≤ 3mArms).
An effective cooling makes the transformer very silent, where the fan is only on during high loads.
A powersupply cable and 2 sets of crocodile clips on wire with banana plug is included.
Facts
| Noise / ripple: | ≤ 2mVrms and ≤ 3mArms |
| Regulation, line: | ≤0.01%+3mV and ≤0.1%+3mA |
| Regulation, load: | ≤0.01%+3mV and ≤0.1%+10mA |
| Setup precision: | ≤0.5%+20mV and ≤0.5%+10mA |
| Setup resolution: | 10mV and 1mA |
| Voltage: | 2 x 0-30V + 2.5V/3.3V/5V |
| Weight: | 10,3kg |
Advanced digital powersupply, with 2 output on 30V 5A, and 1 output on 5V/3.3V/2.5V. Series and parallel coupling of outputs.
