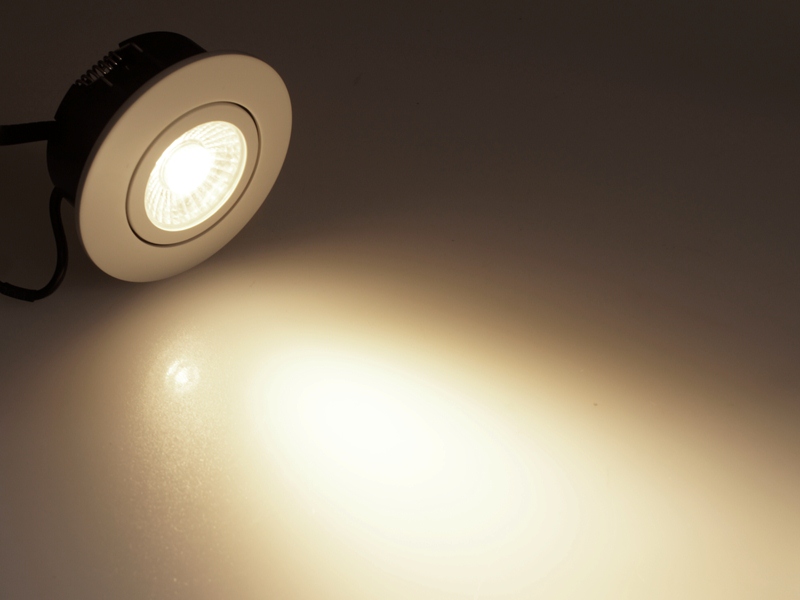

DIOSPOT 30 V2 LED Downlight for isolation
Swivel and dimmable LED downlight from Diospot with a very low installation height and with an integrated LED bulb at a Ra value / color rendering of 95 out of 100. They are intended to be mounted directly in the insulation ring.
There are several choices for this LED downlight, and you can choose between the colors white, brushed steel and black.
You can also choose between the color temperatures of 2700 Kelvin and 3000 Kelvin, which are all dependent on whether you want a warm, or slightly colder, white light. This LED downlight can be turned / tilted by 20 degrees.
This type of LED downlight is approved for mounting on / in flammable materials, can be relayed with 3G1,5mm2, and is dimmable with all common dampers such as e.g. Niko-dimmers. Must be mounted with min. 70 ° C heat-resistant cable andcan only be used for indoor use.
Even though the bulb is said to be dimmable, the dimming depends on the dimmer / IHC. The minimum load on the dimmer should often be met, for the dimming to be optimal. Contact us if you are in doubt.
Even though the bulb is said to be dimmable, the dimming depends on the dimmer / IHC. The minimum load on the dimmer should often be met, for the dimming to be optimal. Contact us if you are in doubt.
Even though the bulb is said to be dimmable, the dimming depends on the dimmer / IHC. The minimum load on the dimmer should often be met, for the dimming to be optimal. Contact us if you are in doubt.
Even though the bulb is said to be dimmable, the dimming depends on the dimmer / IHC. The minimum load on the dimmer should often be met, for the dimming to be optimal. Contact us if you are in doubt.
Even though the bulb is said to be dimmable, the dimming depends on the dimmer / IHC. The minimum load on the dimmer should often be met, for the dimming to be optimal. Contact us if you are in doubt.
Facts for White, 2700K
| Cut: | 75mm |
| Height: | 32mm |
| Max. ceiling thickness: | 30mm |
| Outer diameter: | 90mm |
Facts for White, 3000K
| Cut: | 75mm |
| Height: | 32mm |
| Max. ceiling thickness: | 30mm |
| Outer diameter: | 90mm |
Facts for Brushed steel, 2700K
| Cut: | 75mm |
| Height: | 32mm |
| Max. ceiling thickness: | 30mm |
| Outer diameter: | 90mm |
Facts for Brushed steel, 3000K
| Cut: | 75mm |
| Height: | 32mm |
| Max. ceiling thickness: | 30mm |
| Outer diameter: | 90mm |
Facts for Black, 3000K
| Cut: | 75mm |
| Height: | 32mm |
| Max. ceiling thickness: | 30mm |
| Outer diameter: | 90mm |
IP rating
| Rating: | IP 44 |
| Solid: | 4 - Protected < 1mm |
| Liquid: | 4 - Water splash, all directions |
IP rating
| Rating: | IP 44 |
| Solid: | 4 - Protected < 1mm |
| Liquid: | 4 - Water splash, all directions |
IP rating
| Rating: | IP 44 |
| Solid: | 4 - Protected < 1mm |
| Liquid: | 4 - Water splash, all directions |
IP rating
| Rating: | IP 44 |
| Solid: | 4 - Protected < 1mm |
| Liquid: | 4 - Water splash, all directions |
IP rating
| Rating: | IP 44 |
| Solid: | 4 - Protected < 1mm |
| Liquid: | 4 - Water splash, all directions |
Swivel and dimmable LED DIOSPOT Downlight with integrated light source for insulation, available in 3 different colors: white, brushed steel and black.
Pick color
| White | |||
|
|||
|
|
|||
| Brushed steel | |||
|
|
|||
|
|
|||
| Black | |||
|
|
|||
Datasheet
| Socket | No socket |
| Bulb type | Spot |
| Voltage | AC230V |
| Watt | 6.0 Watt |
| Brightness | 320 Lumen |
| Color temperature | 2700 Kelvin |
| Angle | 38 degree |
| Color rendering | 95 |
| Life time | 30000 Hours |
| Dimming | Yes, dimmable |
| Energy class 2023 |
G
Notice that new rules for energy-marking have been implemented in 2023. The intervalls have been changed, which means many bulbs that were previously A, are now F or G. |
| Lamp maintenance factor | 70 % |
| On-off cycles | 50000 |
| Warmup time | Instant |
| Usable for spot | Yes |
| Lamp survival factor | 95 |
| Socket | No socket |
| Bulb type | Spot |
| Voltage | AC230V |
| Watt | 6.0 Watt |
| Brightness | 320 Lumen |
| Color temperature | 3000 Kelvin |
| Angle | 38 degree |
| Color rendering | 95 |
| Life time | 30000 Hours |
| Dimming | Yes, dimmable |
| Energy class 2023 |
G
Notice that new rules for energy-marking have been implemented in 2023. The intervalls have been changed, which means many bulbs that were previously A, are now F or G. |
| Lamp maintenance factor | 70 % |
| On-off cycles | 50000 |
| Warmup time | Instant |
| Usable for spot | Yes |
| Lamp survival factor | 95 |
| Socket | No socket |
| Bulb type | Spot |
| Voltage | AC230V |
| Watt | 6.0 Watt |
| Brightness | 320 Lumen |
| Color temperature | 2700 Kelvin |
| Angle | 38 degree |
| Color rendering | 95 |
| Life time | 30000 Hours |
| Dimming | Yes, dimmable |
| Energy class 2023 |
G
Notice that new rules for energy-marking have been implemented in 2023. The intervalls have been changed, which means many bulbs that were previously A, are now F or G. |
| Lamp maintenance factor | 70 % |
| On-off cycles | 50000 |
| Warmup time | Instant |
| Usable for spot | Yes |
| Lamp survival factor | 95 |
| Socket | No socket |
| Bulb type | Spot |
| Voltage | AC230V |
| Watt | 6.0 Watt |
| Brightness | 320 Lumen |
| Color temperature | 3000 Kelvin |
| Angle | 38 degree |
| Color rendering | 95 |
| Life time | 30000 Hours |
| Dimming | Yes, dimmable |
| Energy class 2023 |
G
Notice that new rules for energy-marking have been implemented in 2023. The intervalls have been changed, which means many bulbs that were previously A, are now F or G. |
| Lamp maintenance factor | 70 % |
| On-off cycles | 50000 |
| Warmup time | Instant |
| Usable for spot | Yes |
| Lamp survival factor | 95 |
| Socket | No socket |
| Bulb type | Spot |
| Voltage | AC230V |
| Watt | 6.0 Watt |
| Brightness | 320 Lumen |
| Color temperature | 3000 Kelvin |
| Angle | 38 degree |
| Color rendering | 95 |
| Life time | 30000 Hours |
| Dimming | Yes, dimmable |
| Energy class 2023 |
G
Notice that new rules for energy-marking have been implemented in 2023. The intervalls have been changed, which means many bulbs that were previously A, are now F or G. |
| Lamp maintenance factor | 70 % |
| On-off cycles | 50000 |
| Warmup time | Instant |
| Usable for spot | Yes |
| Lamp survival factor | 95 |
