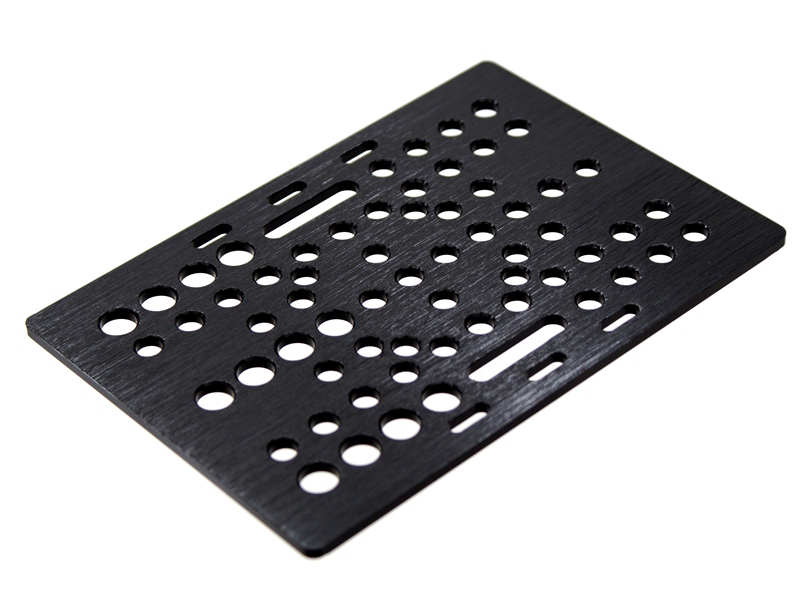

V-slot - V-plate / gantry - 127x/88

    Large V-slot plate, that can be used by all profiles, also for C-beam. The large plate has space for 2 x 3 wheels. It also has a lot of holes and slots for mounting belt and other parts.

    The plate it made of 3mm anodized aluminum.

    To use this plate you need:

    • 6 x V-slot standard wheels
    • 3 x Excentric spacer
    • 3 x Standard spacer (same length as the excentric)
    • 6 x Precision-washer (5.3x8mm)
    • 6 x Bolts, M5 x 25mm
    • 6 x Nuts, M5

    Large V-slot plate, that can be used by all profiles, also for C-beam. The large plate has space for 2 x 3 wheels.
